Your delivery meters, on one screen beside the mix.

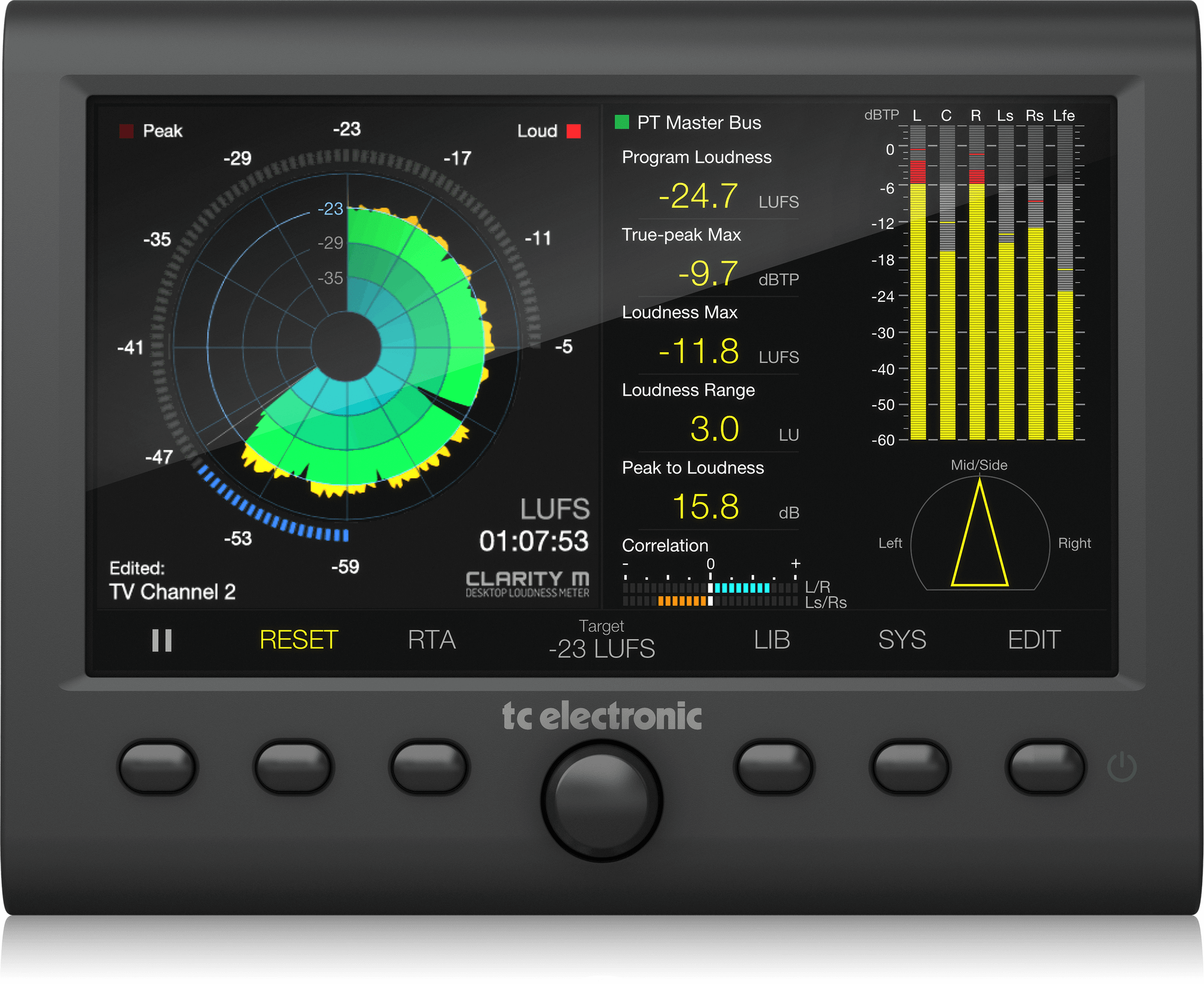

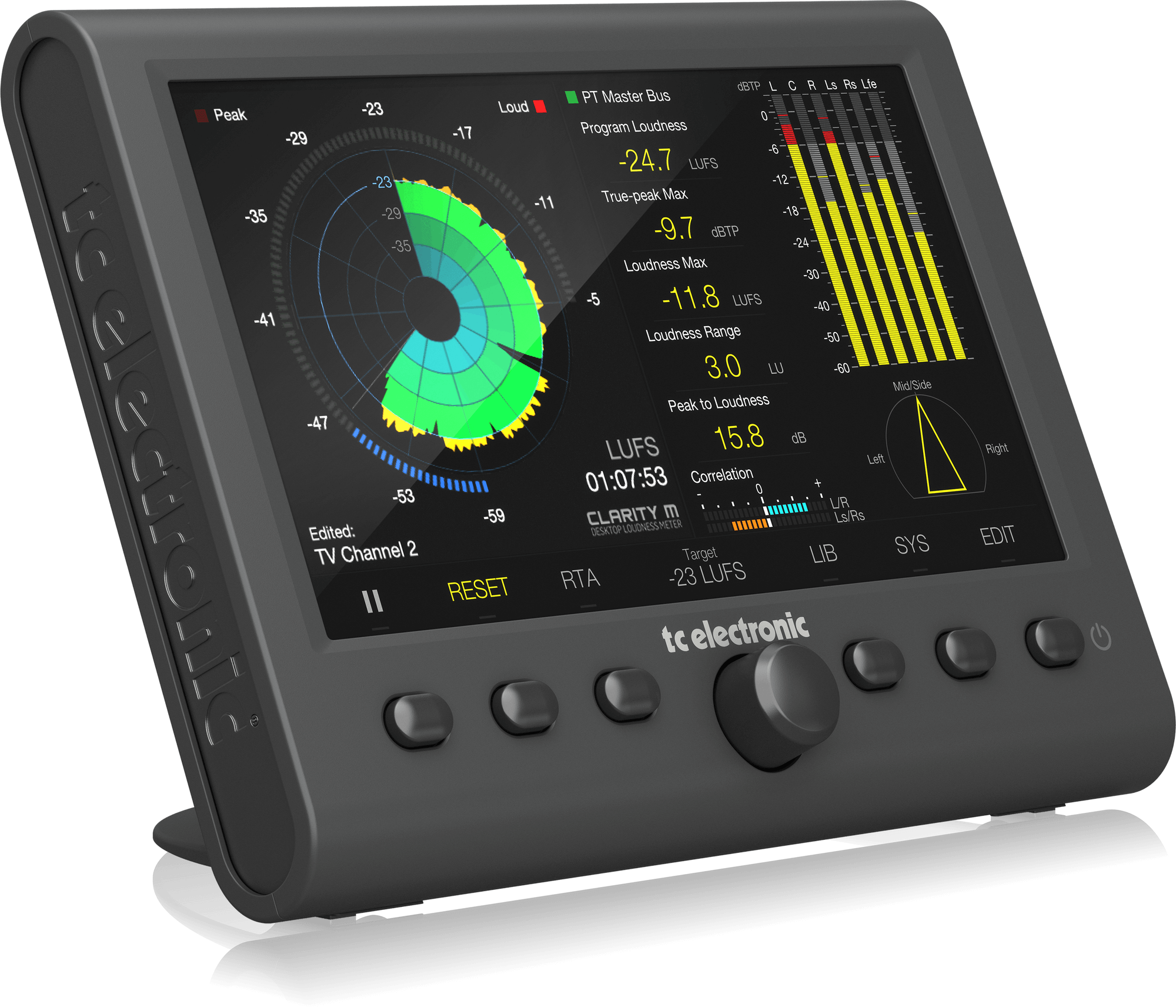

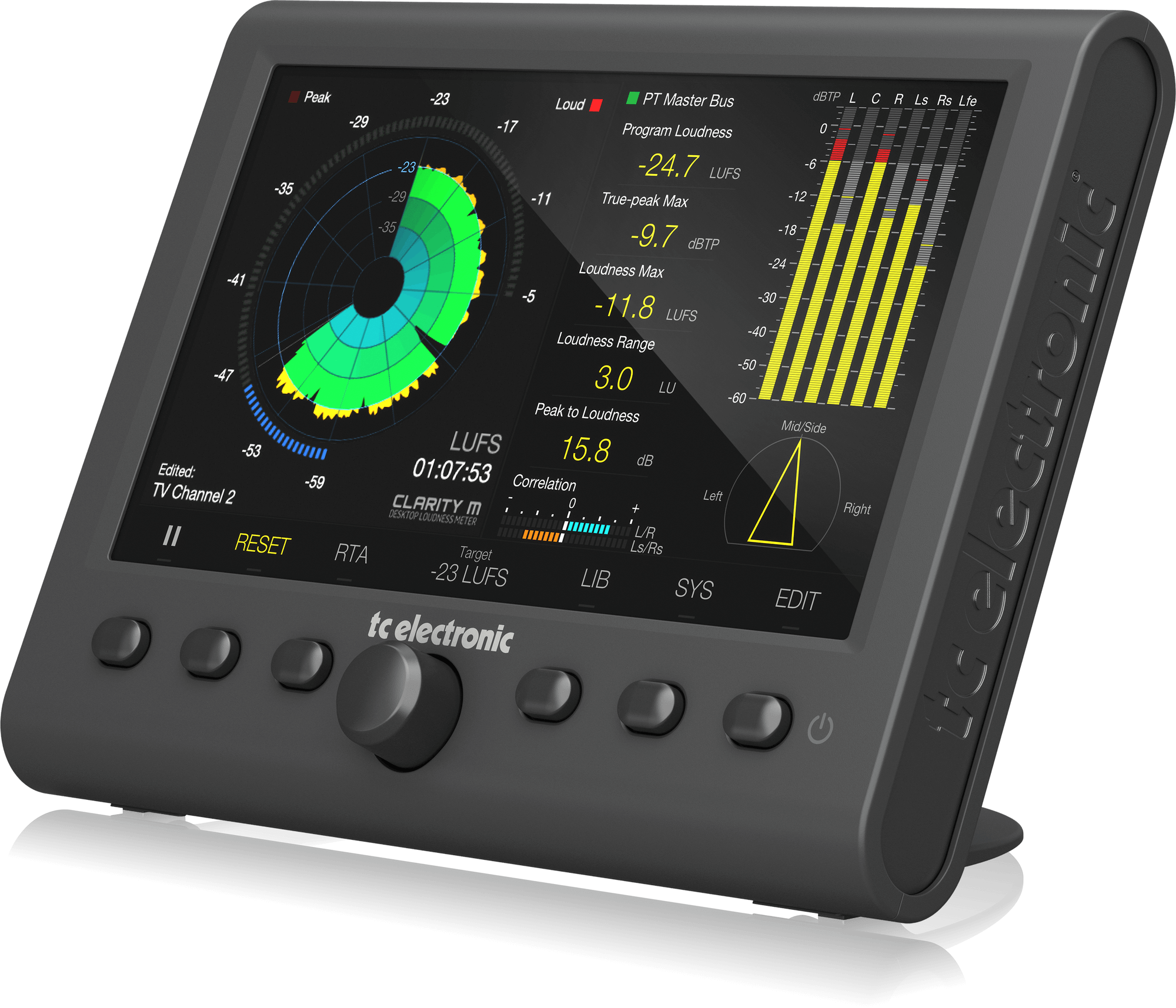

A mix can sound right and still miss its delivery target. Clarity M shows loudness, true peak, phase and spectrum at a glance on a single screen. It is ideally suited to stereo and 5.1 mixing, mastering and post-production.
History and the moment, side by side
The LM6 Loudness Radar Meter traces short-term loudness history, with momentary loudness on the outer ring. That momentary reading uses a sliding 400 ms window, a valuable aid when you start a new mix. Clarity M complies with ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59.
Catch phase and frequency problems early
The real time analyser has 1/3 octave resolution, and band zoom pinpoints exact frequencies. The vector scope helps identify stereo balance and phase issues. A true peak meter identifies clipping in DACs, codecs and downstream filters.
Meter plug-ins, consoles or interfaces

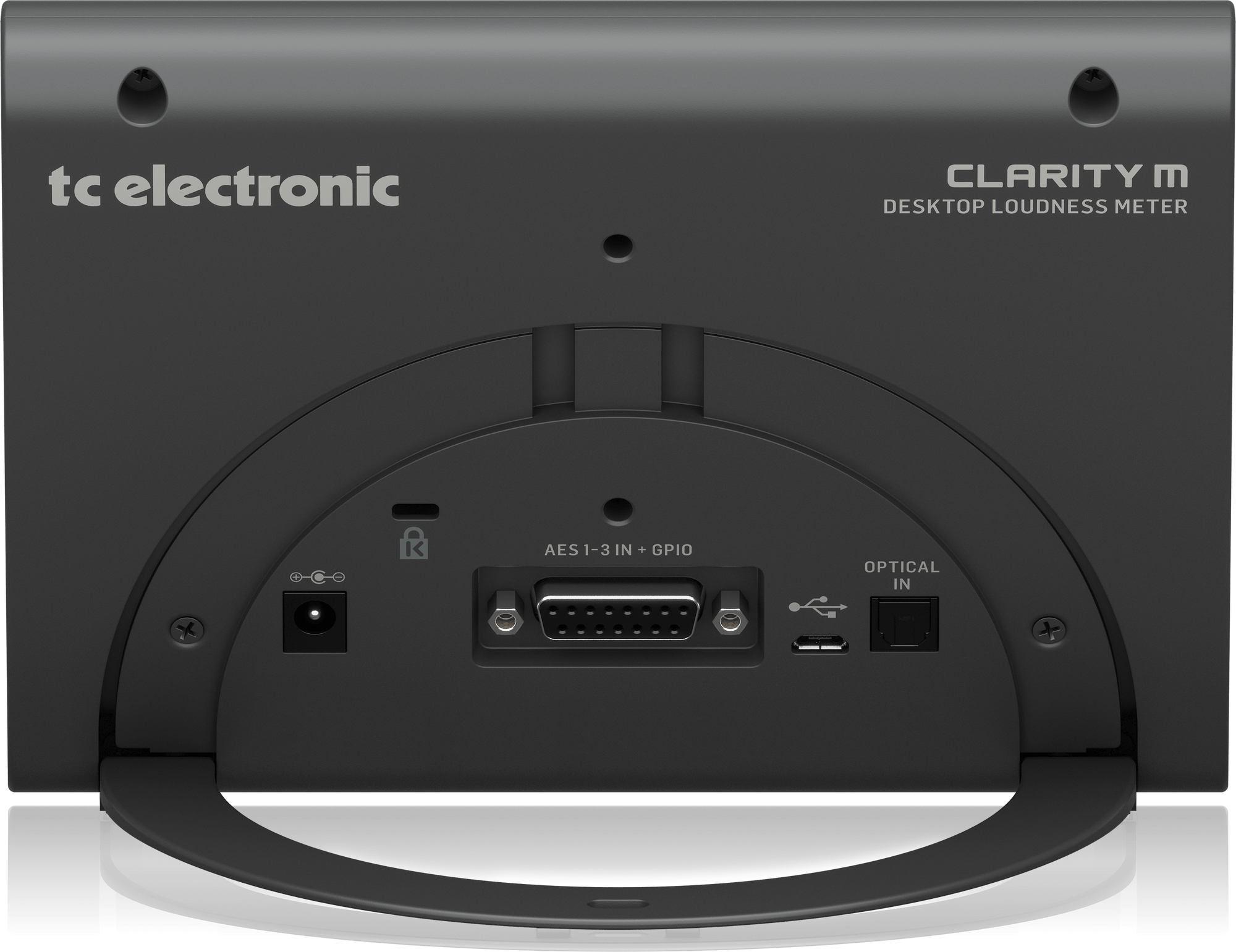

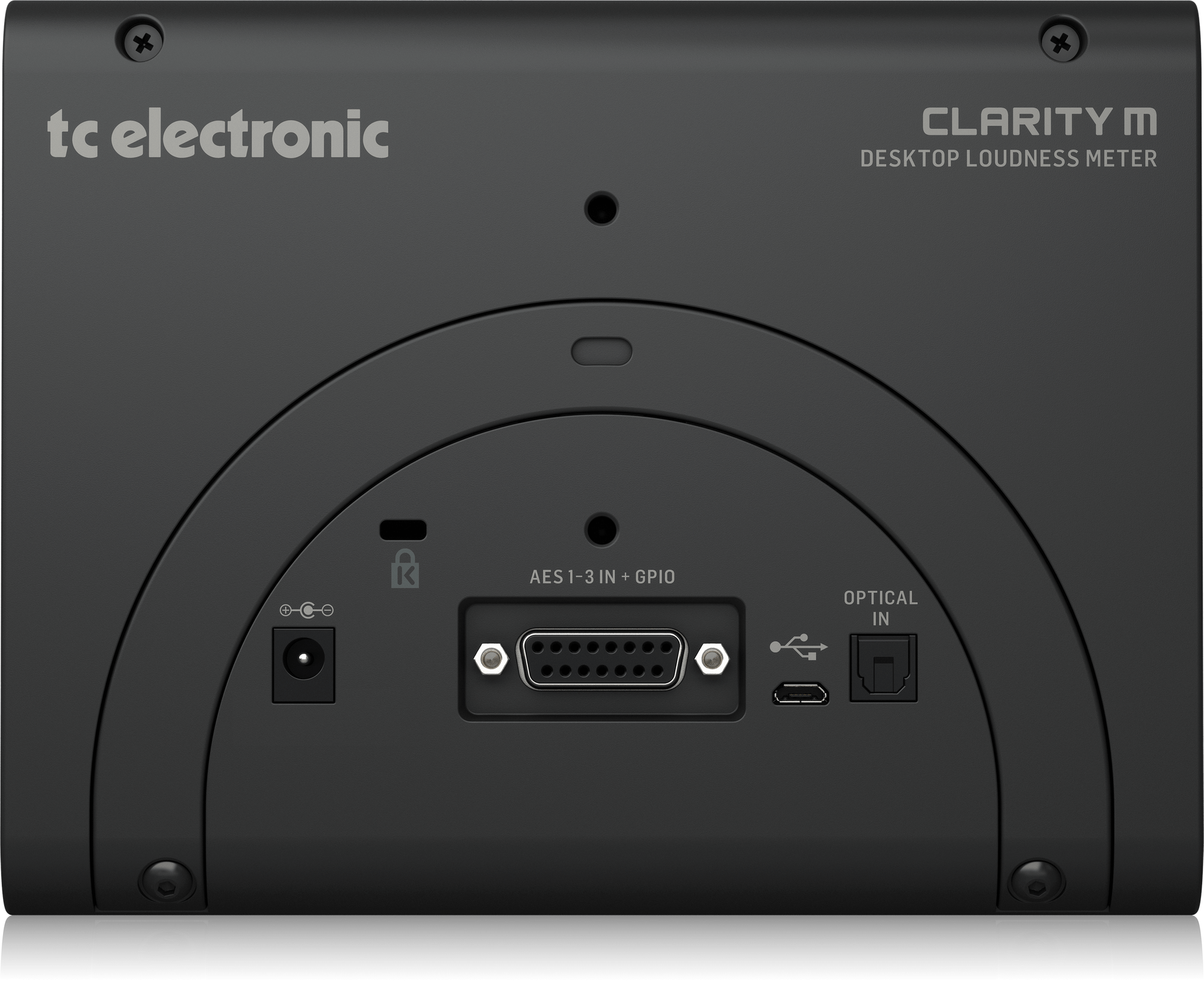

Over USB, it meters your DAW through VST, Audio Units and AAX plug-ins. The included breakout cable has 3 BNC connectors for 6 channels of AES3, enough for 5.1. S/PDIF works with the included BNC-to-RCA adapter, and there is a stereo optical input.
