A hall, a plate or an echo, one knob away.

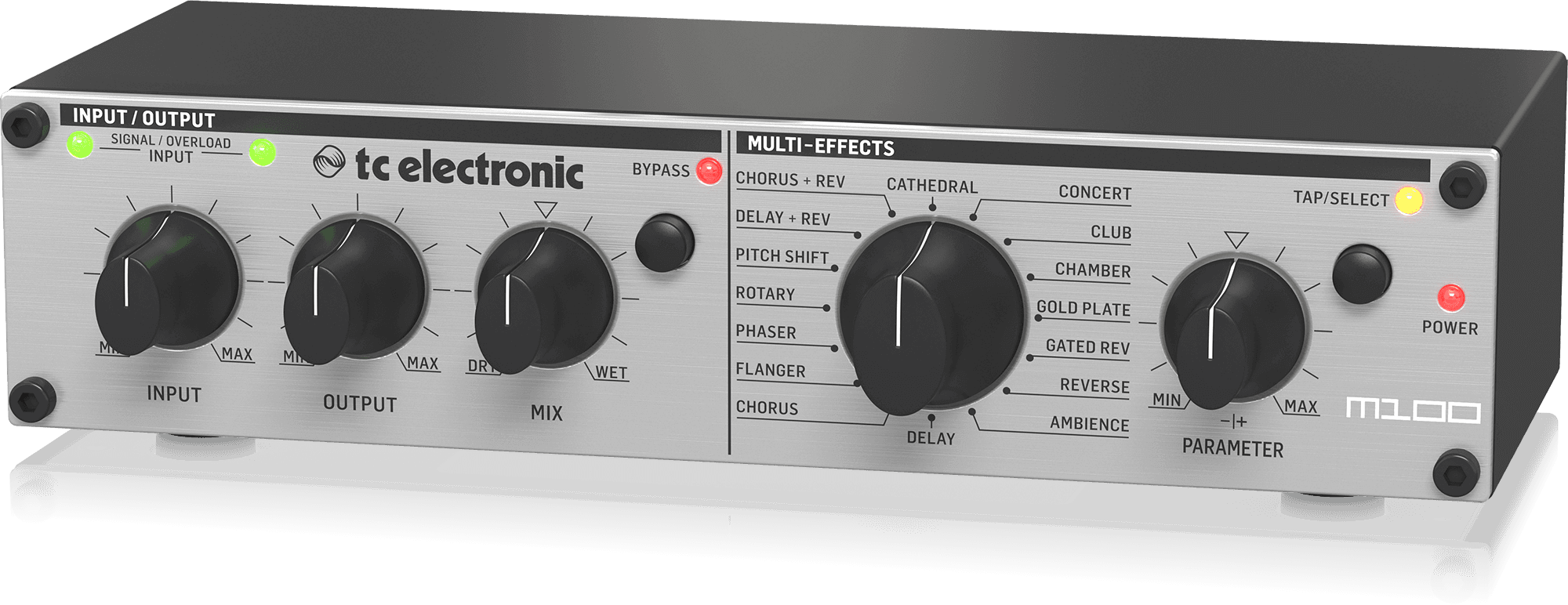

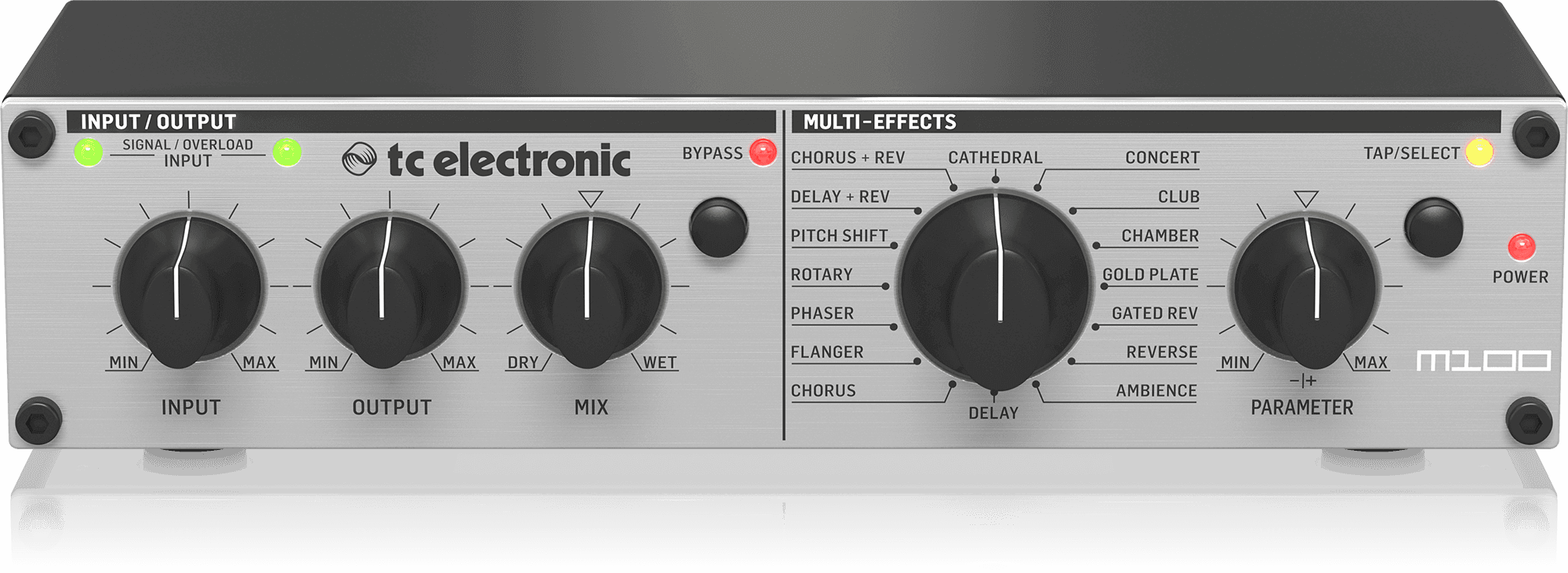

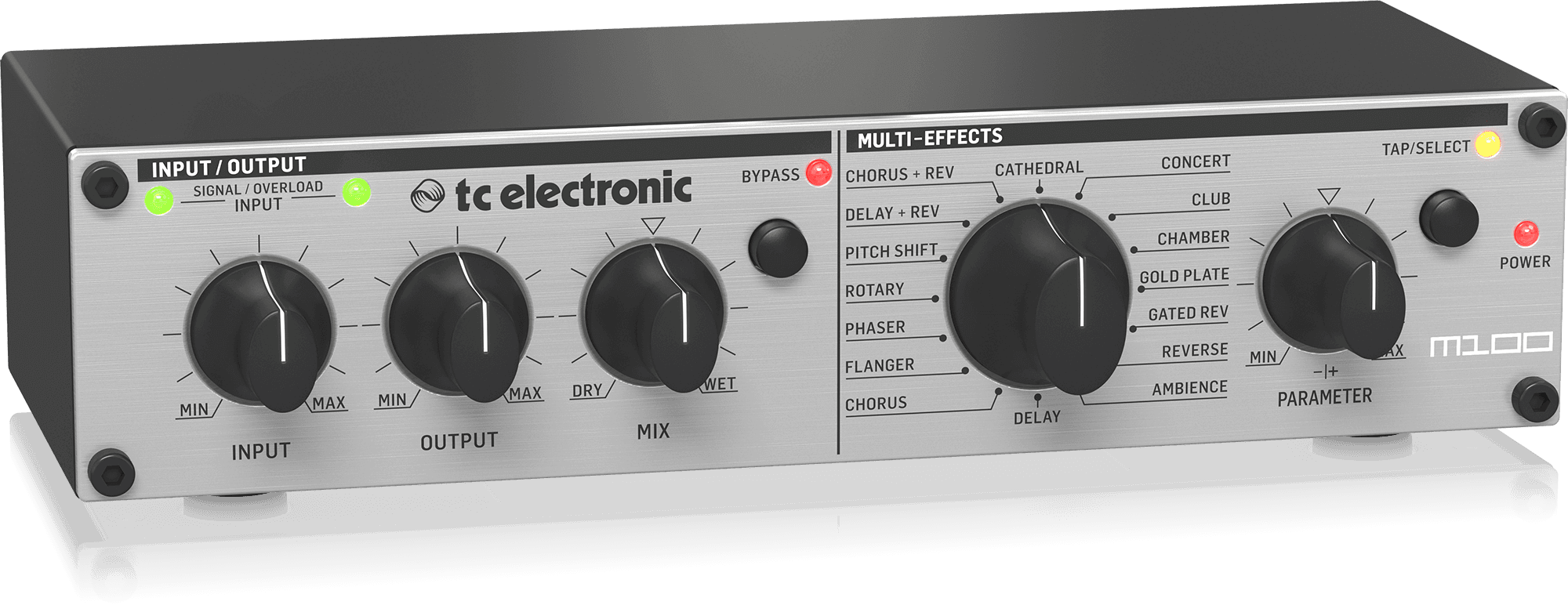

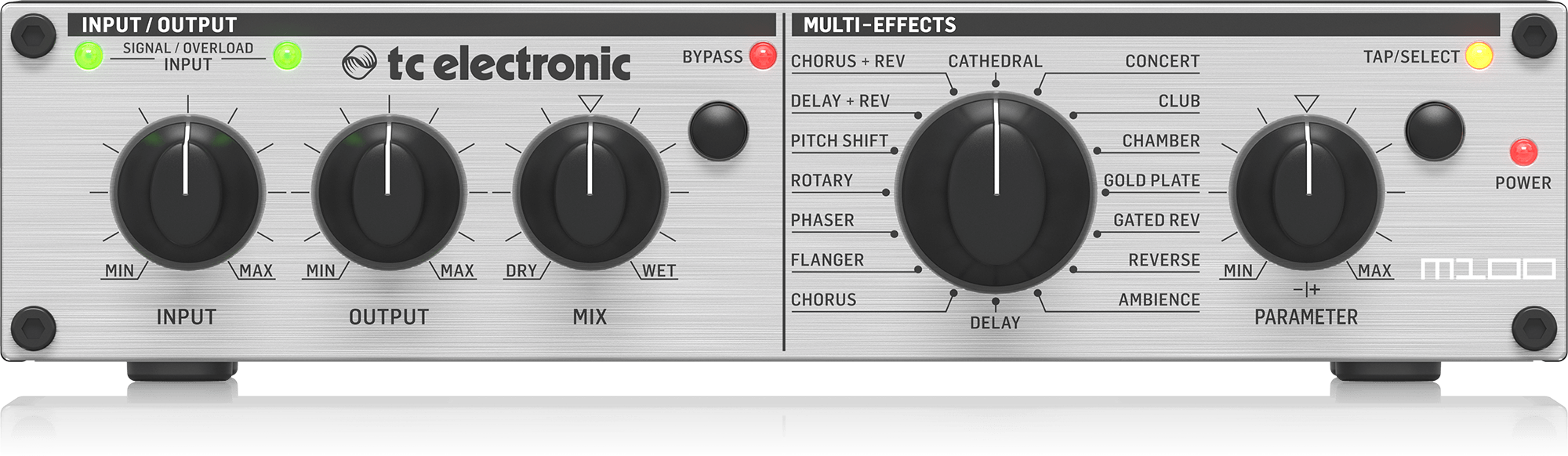

Which room should this vocal live in? Pick from 16 effect presets on the M100, from Cathedral and Gold Plate to Delay and Rotary. The EFFECTS knob selects one, and the PARAMETER knob adjusts its first parameter.
A space for each part
Club gives early reflections and a short decay, for vocals, drums or saxophone. Cathedral adds a long reverb for solo instruments and vocals. Reverse Reverb grows instead of fading, a popular choice on snare drums.
In time with the music
Tap the TAP/SELECT button in rhythm to set delay time or modulation rate. The MIX knob blends the dry and processed signal. Add a footswitch on the FOOTSW jack to bypass the effect remotely.
Patch it where you need it

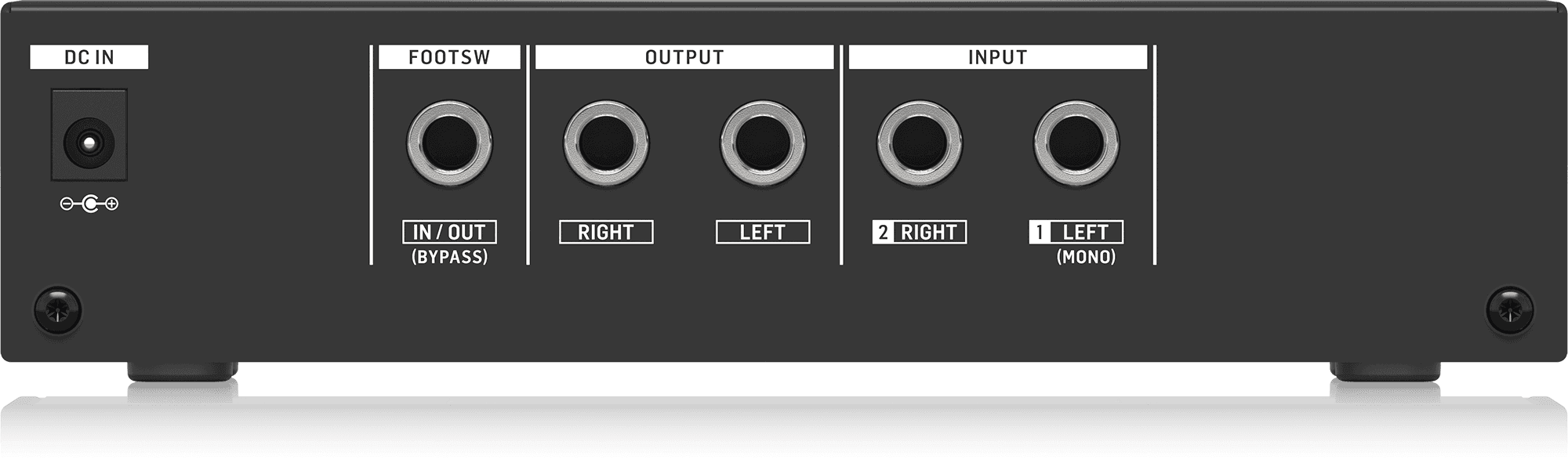

Run it in a mixer insert path, or as an effects device for instruments. Inputs take 1/4" TS or TRS, and outputs are 1/4" TRS. The MIDI DIN connector handles MIDI CC control and firmware updates. Parameter changes hold until you power off.
