JIMS 45 PREAMP

Technical facts

Input: 1 x ¼" TS, unbalanced
Input impedance: >1 MΩ
Output: 1 x ¼" TRS, balanced with ground sensing*
Direct out (cab sim): 1 x ¼" TRS, balanced with ground sensing*
Output impedance: 1 kΩ
Headphones: 1 x 1/8" TRS, stereo
Headphones impedance range: >32 Ω
USB port: Mini-B USB connector

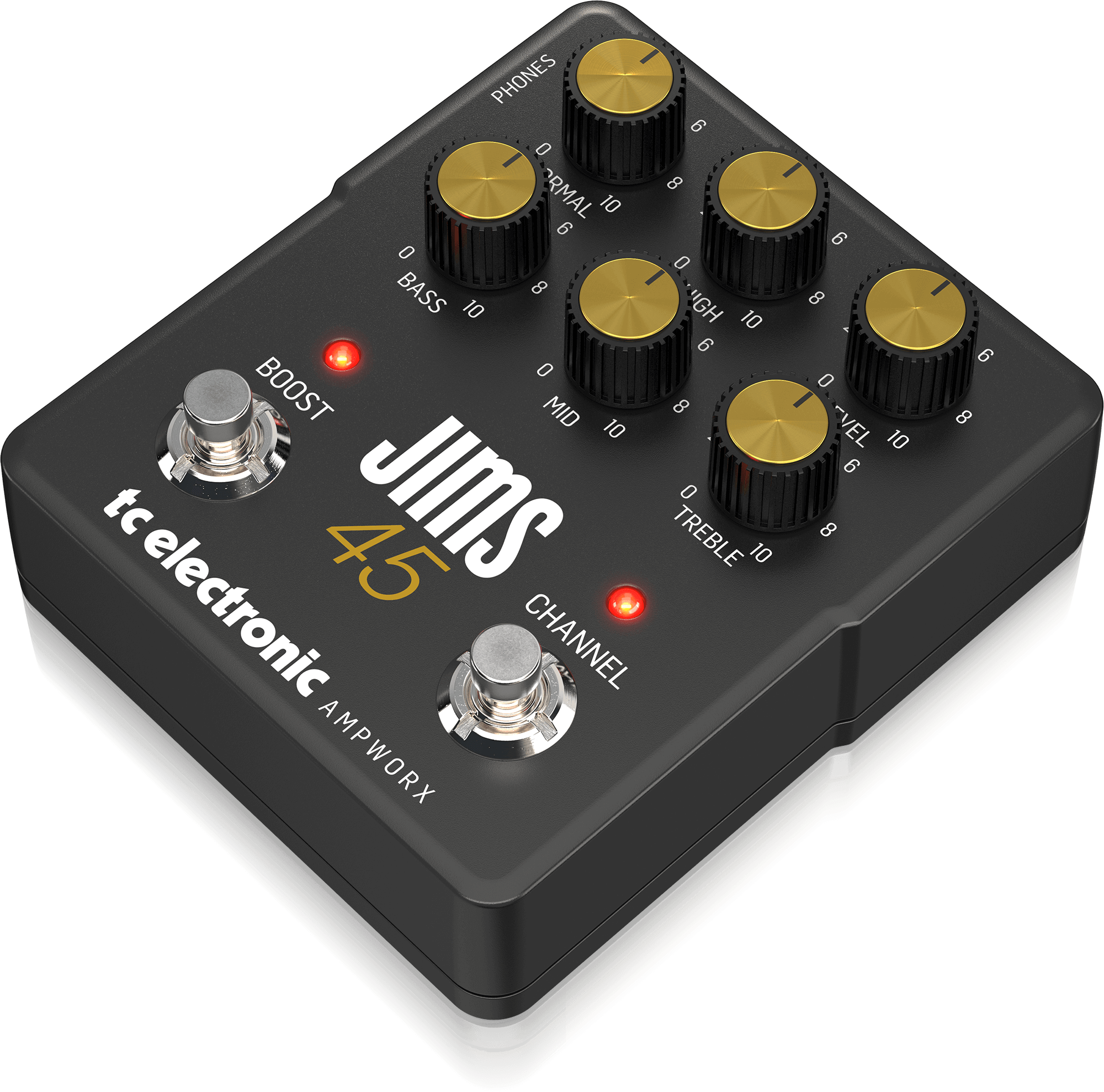

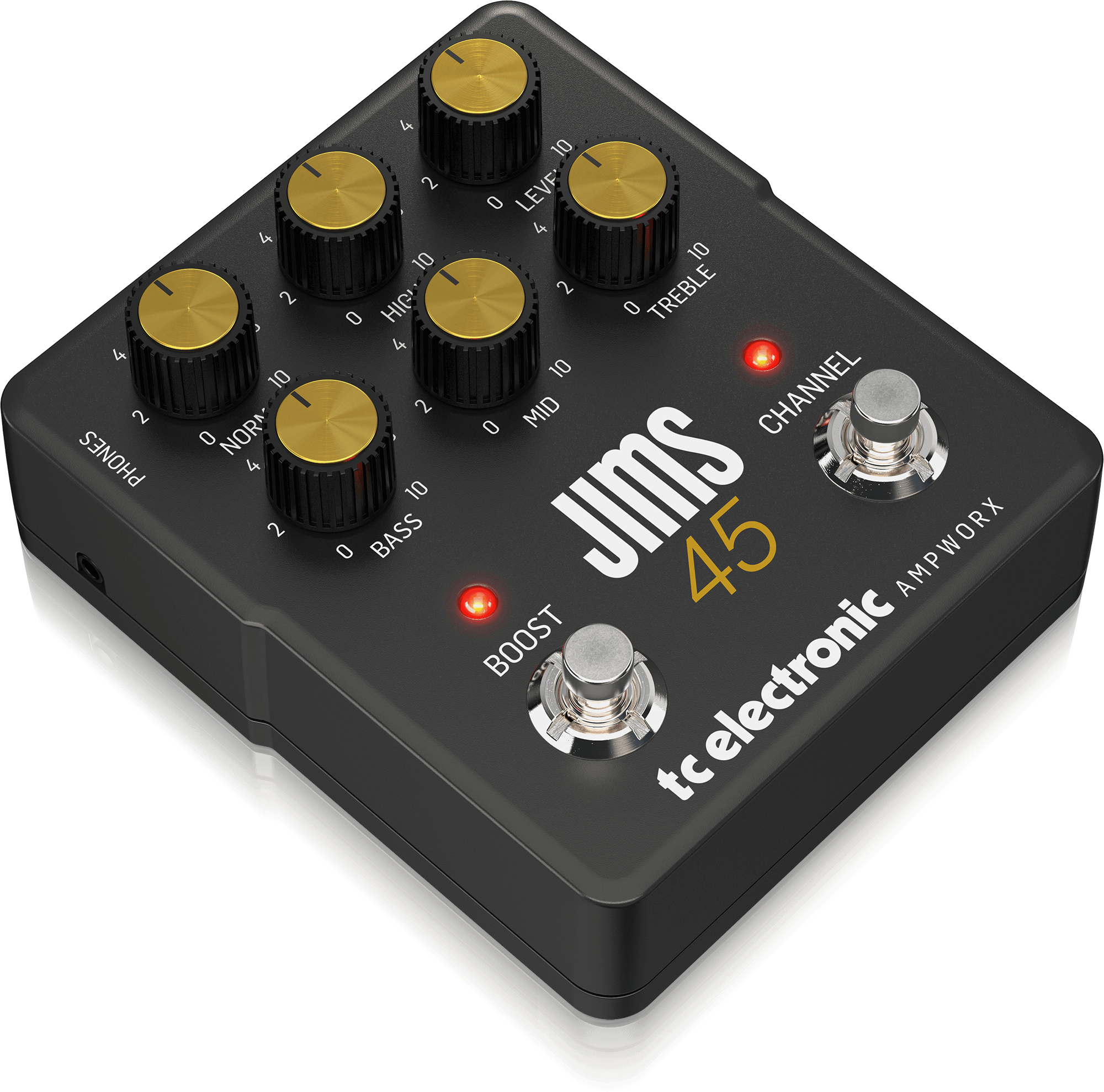

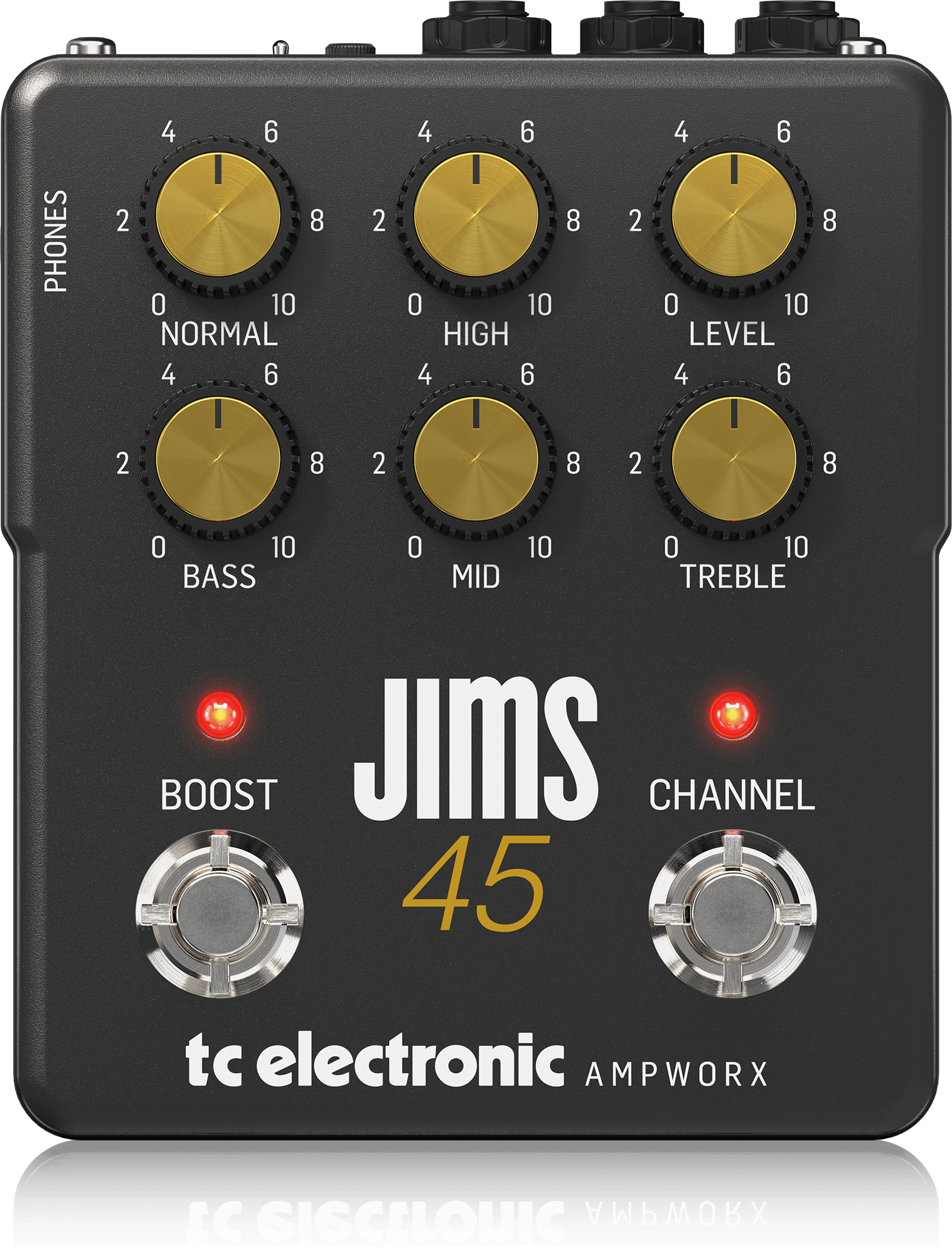

Front panel: NORMAL, HIGH, LEVEL, BASS, MID, TREBLE

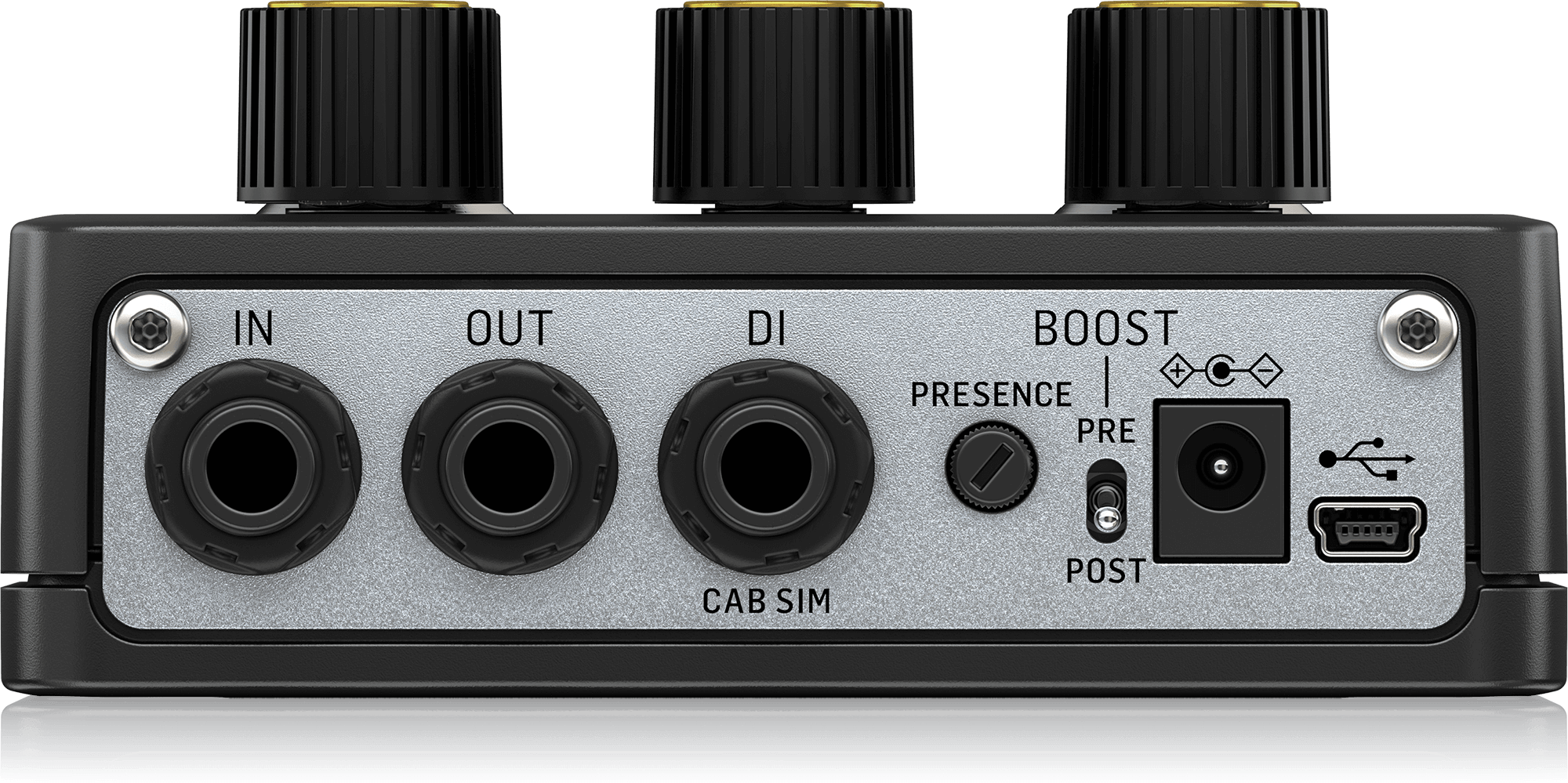

Top panel: PRESENCE, BOOST switch (PRE / POST)
Footswitches: BOOST, CHANNEL (bypass)
Speaker and cab emulation impulse response: Celestion G12M Creamback, 4 x 12" closed cabinet
Bypass: Buffered bypass
