Technical facts
Specifications
- Headroom (Max. Input Level)
- -40dB
- In
- >400KΩ
- Out
- 1KΩ
- Noise floor
- -65dB
- Frequency range
- 80-20KHz
- Eq. frequencies and min/max gain
- 120Hz: +18dB/-18dB 5KHz: +15dB/-15dB
- Max output gain
- +40dB

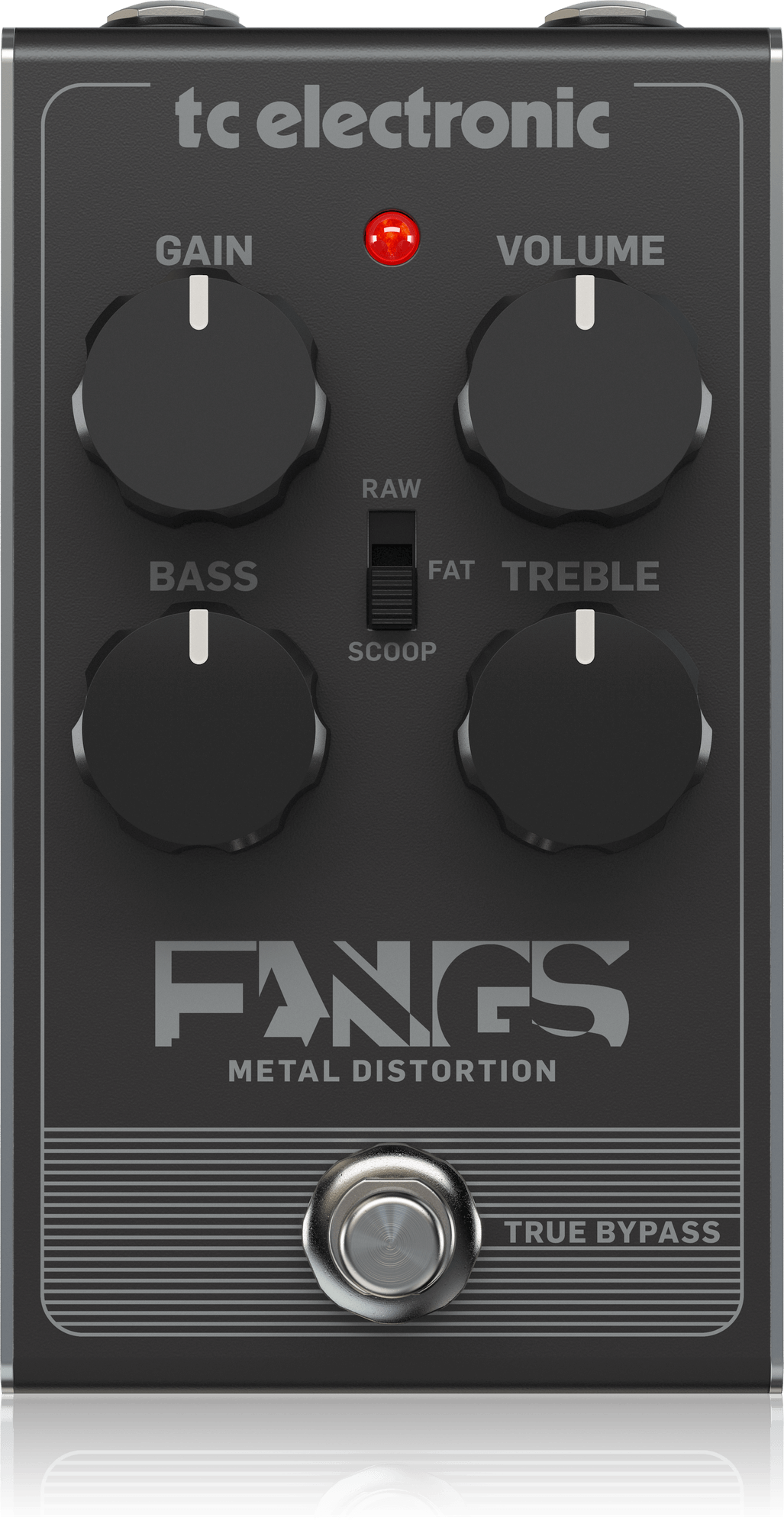

- the 3-position switch
- 400Hz RAW:+13dB; SCOOP: -13dB
